Vietnam Model

specifications

SPECIFICATIONS

Engine

Type

Single Cylinder, 4-stroke, Fuel Injected, Air Cooler, Spark Ignition Engine

Displacement

124.8 cc

Max. Power

6.9 kW @ 7000 rpm

Max. Torque

10.5 Nm @ 5500 rpm

Clutch

Dry Centrifugal Clutch

Electricals

Battery

12 V, 4 Ah MF

Headlamp

LED

Chassis

Frame

Under Bone Tubular Type

Dimensions

1861x710x1164 mm

Wheelbase

1285 mm

Ground Clearance

155 mm

Kerb Weight

110 kg

Suspension

Front

Telescopic Hydraulic

Rear

Toggle link, Gas Filled Hydraulic Damper

Tyres

Front

100/80-12 - Tubeless

Rear

110/80-12 - Tubeless

Brakes

Front

Disc 220 mm

Rear

Dia drum 130 mm

Fuel Tank Capacity

Fuel Tank

5.8 litre

Air Filter

Air Filter

Paper + Foam Filter

colours
specifications

COLOURS

marine blue

red

yellow

specifications

SPECIFICATIONS

Engine

Type

4-Stroke, Single Cylinder, Air Cooled, OHC

Displacement

124.8 cc

Max. Power

6.9kW @ 7000 rpm

Max. Torque

10.5 Nm @ 5500 rpm

Electricals

Battery

12 V, 4 Ah MF

Headlamp

35/35 W HS1

Chassis

Frame

Under bone tubular frame

Dimensions

1861x710x1164 mm

Wheelbase

1285 mm

Ground Clearance

155 mm

Kerb Weight

118 kg

Suspension

Front

Telescopic hydraulic

Rear

Gas filled hydraulic damper

Tyres

Front

Tubeless 100/80x12

Rear

Tubeless 110/80x12

Brakes

Front

Disc 220 mm

Rear

Dia drum 130 mm

Fuel Tank Capacity

Fuel Tank

5.8 litre

Air Filter

Air Filter

Dry paper filter with dry foam

colours

colours
specifications

COLOURS

mint green

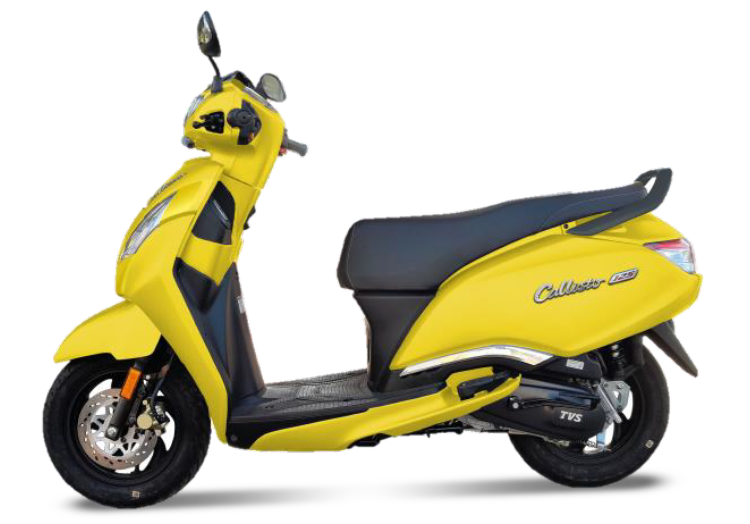

banana yellow

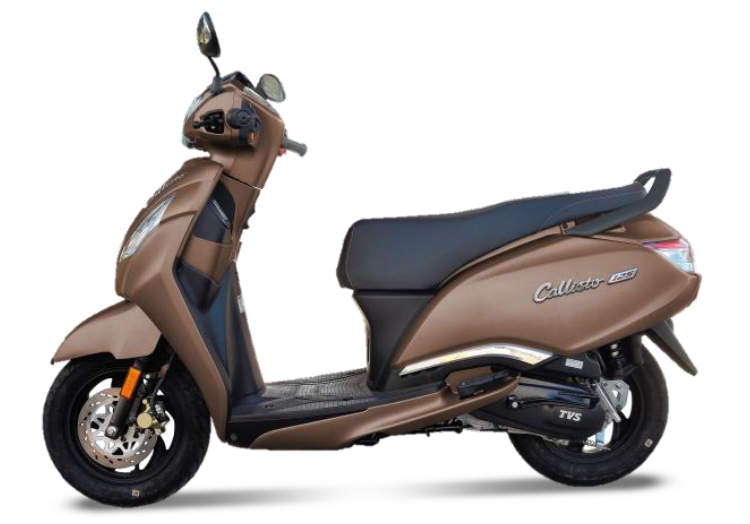

autumn brown

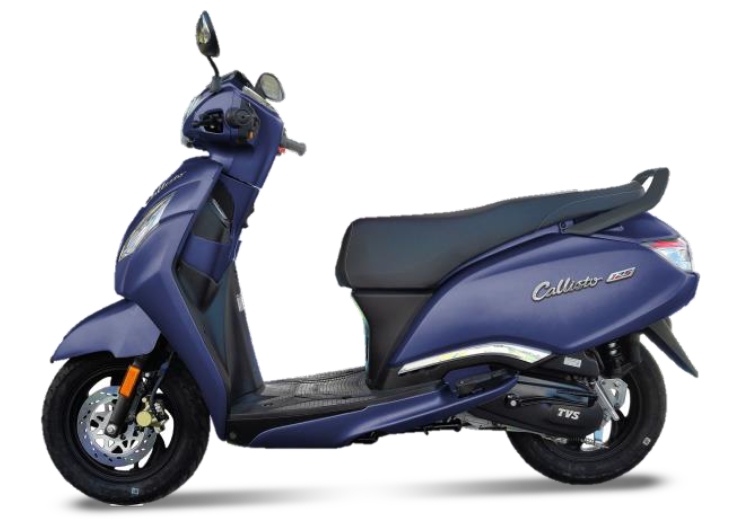

indiblue

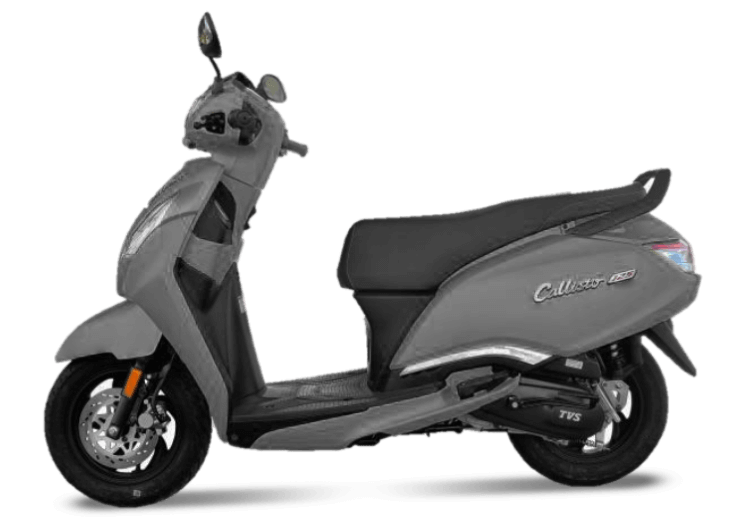

Titanium Grey

specifications

SPECIFICATIONS

Engine

Type

Single Cylinder, 4-Stroke, Air Cooled

Displacement

124.76 cc

Bore x Stroke

53.5 x 55.5 mm

Fuel Supply System

ETFI-Fuel injection - Closed loop

Air Filter Type

Paper Filter

Maximum Power

6.0 kW @ 6500 rpm

Maximum Torque

10.5 Nm @ 4500 rpm

Transmission Type

CVT automatic

Electricals

Ignition

ECU Controlled ignition

Battery

12 V, 4 Ah MF battery

Headlamp

LED with Clear lens with MFR

Tail Lamp

Bulb with LED light guide

Starting System

Electric silent Start

Chassis & Suspension

Frame

High Rigidity Underbone Type

Dimensions

1852x681x1168 mm

Wheelbase

1275 mm

Ground Clearance

160 mm(unladen)

Seat Length

790 mm

Kerb Weight

109 kg

Fuel Tank Capacity

5.1L

Wheels

Alloy

Front Suspension

Telescopic Hydraulic

Rear Suspension

Monotube Inverted Gas (MIG) filled shock with Spring aid 3-step adjustable

Brakes & Tyres

Front

220 mm Disc

Rear

130 mm Drum

Tyre Size (Front & Rear)

90/90-12 54J(tubeless)

colours
